WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |

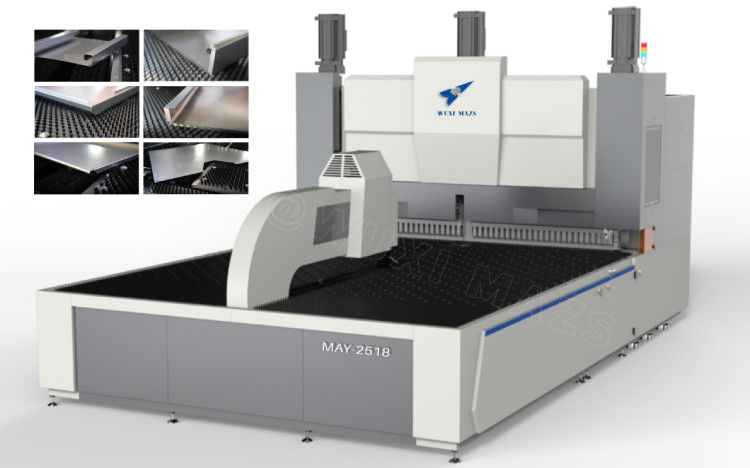

| Model Number: | MAY-2518 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Wooden case, polystyrene foam and other protective materials suitable for sea transportation |
| Delivery Time: | 60 days to 120 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 to 60 sets per month |
| Product Name: | CNC Sheet Metal Folder | Power Hinge Knife: | Standard Equipped |
|---|---|---|---|
| Feeding Method: | Pressing Arm | Double Sides Forming Minimum Inner Size: | 140mm |
| Max. Bending Height: | 170mm | Noise: | Approx. 50dB |
| Rated Voltage: | 380V | Weight: | About 19 Tons |
| Highlight: | MAZS 5.8KW cnc sheet metal bender,MAZS cnc sheet metal bender 244KW,MAZS stainless steel sheet bender 5800W |
||
- Automatic computer controlled sheet metal bending, CNC sheet metal folding machine, Metal sheet bending production;
- Adjustable deflection compensation, increased panel thickness;
- Improved bending accuracy of thick plates;
- Quick release and quick installation of pressure tools;
- Standard electric hinge knife.
- The tooling is made of high-strength and high hardness alloy steel and super alloy steel, and can be traced;
| Items | Technical Parameters |
|---|---|
| Automatic sheet metal bending machine | Yes |
| Automatic computer controlled sheet metal bending | Yes |
| CNC sheet metal folding machine | Yes |
| Axis Quantity | Standard synchronized 18 axis |
| Average Power | About 5.8KW |
| Noise | About 50dB |
| Double Sides Forming Minimum Inner Size | 140mm |
| Fast Bending Speed | 0.2 Second/time |
| Shipping Method | By sea, or as required |
| Max. Bending Size | 2500*1500mm |
| Surface Treatment | Painting (color can be customized) |
| Total Motor Power | 244KW |
| Material | Metal plate, sheet metal |
