WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-2518 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Wooden case, polystyrene foam and other protective materials suitable for sea transportation |
| Delivery Time: | 60 days to 120 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 to 60 sets per month |
| Product Name: | CNC Sheet Metal Folder | Feeding Method: | Pressing Arm |
|---|---|---|---|
| Positioning Method: | Y Axis Double Lift Automatic Positioning Tools | Standard Axis Qty.: | 18 |
| Panel Thickness: | 0.2 S/time | Max. Bending Size: | 2500*1500mm |
| Min. Panel Thickness: | 0.35mm | Noise: | 50dB |
| Highlight: | 6290 x 3000 x 3450mm CNC Sheet Metal Folder,CNC Sheet Metal Folder 0.2s/time,0.2s/time metal bending tools |
||

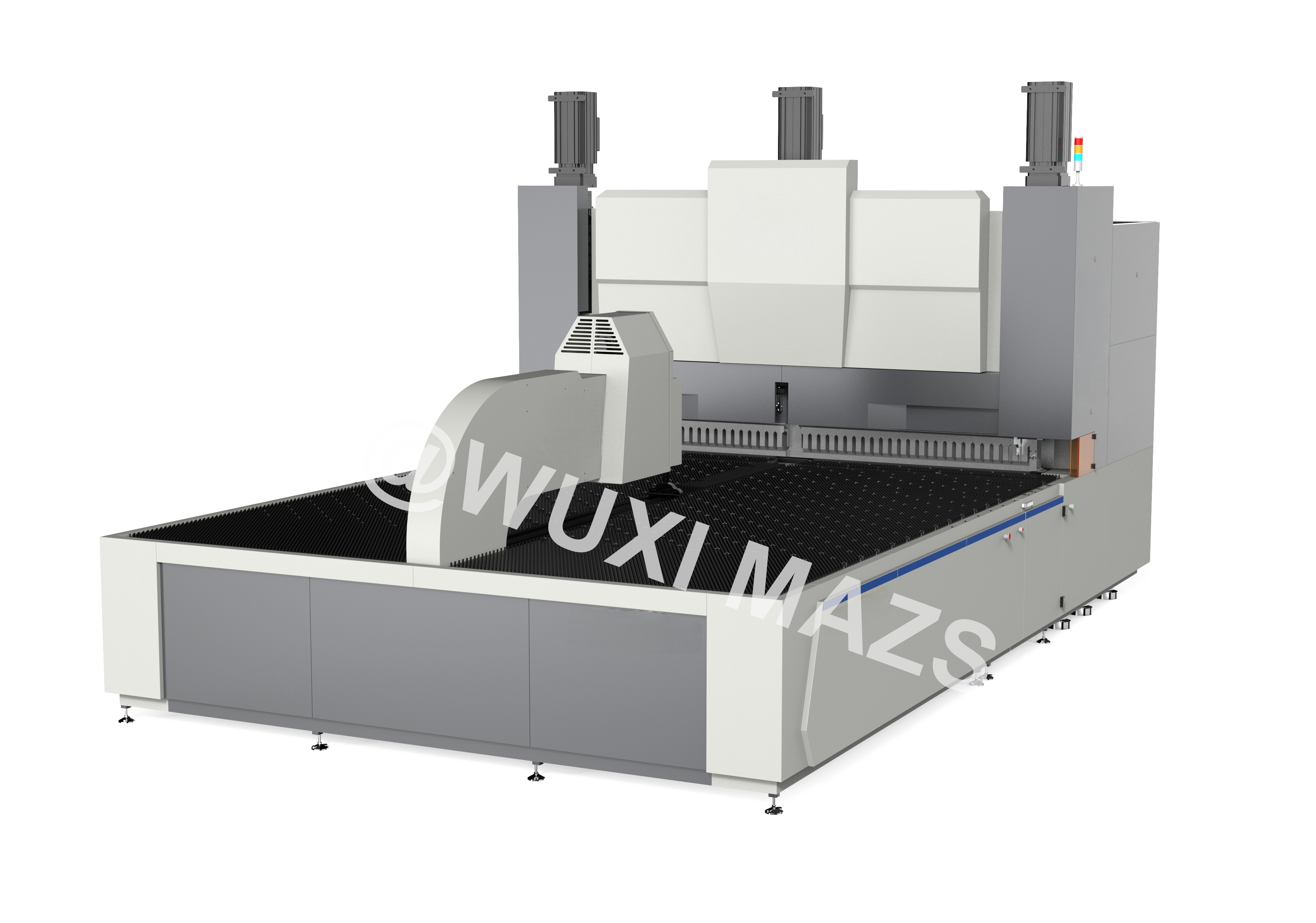

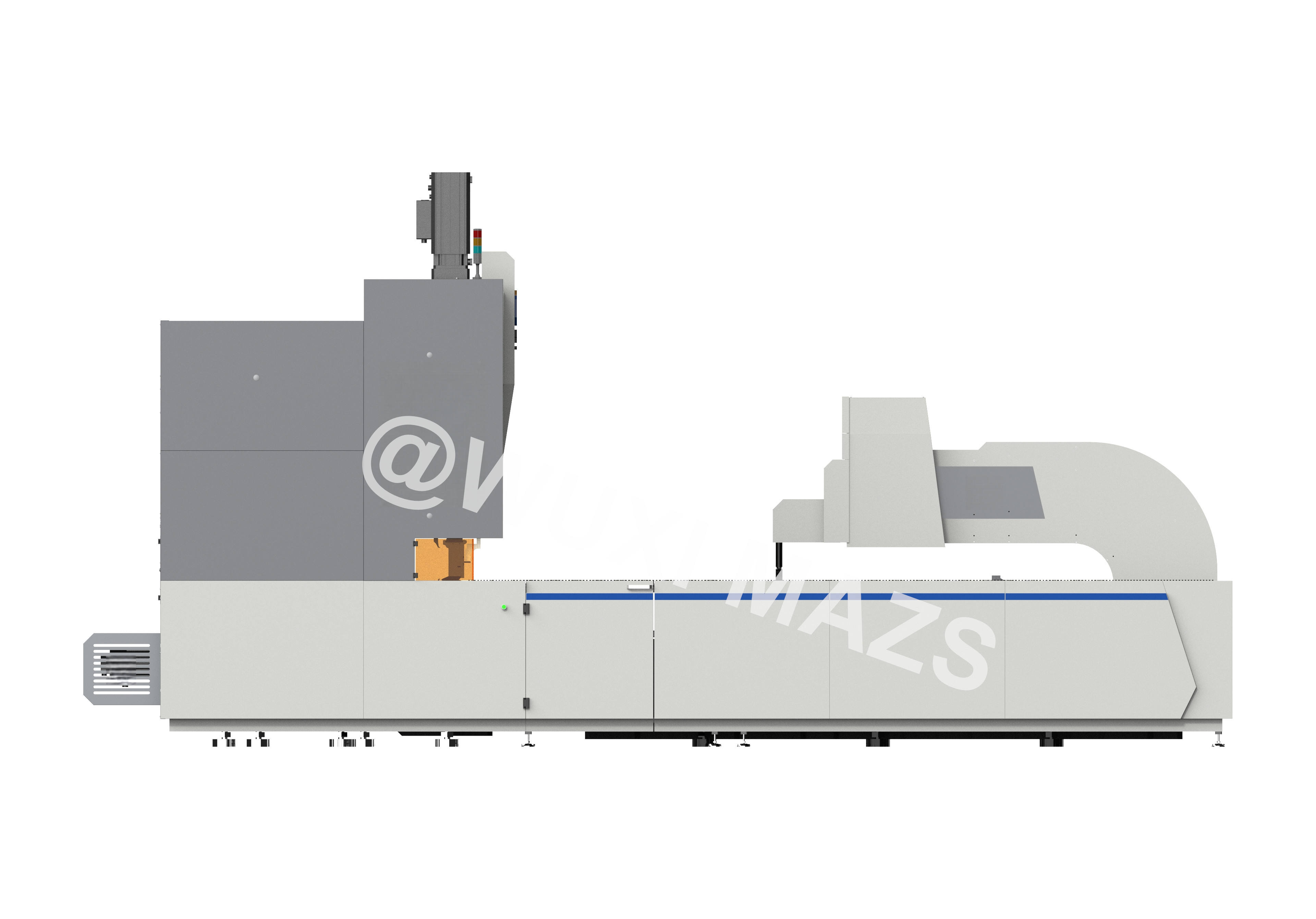

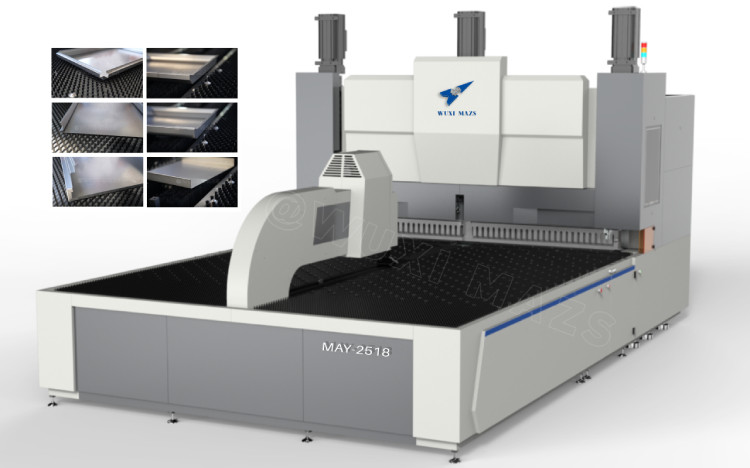

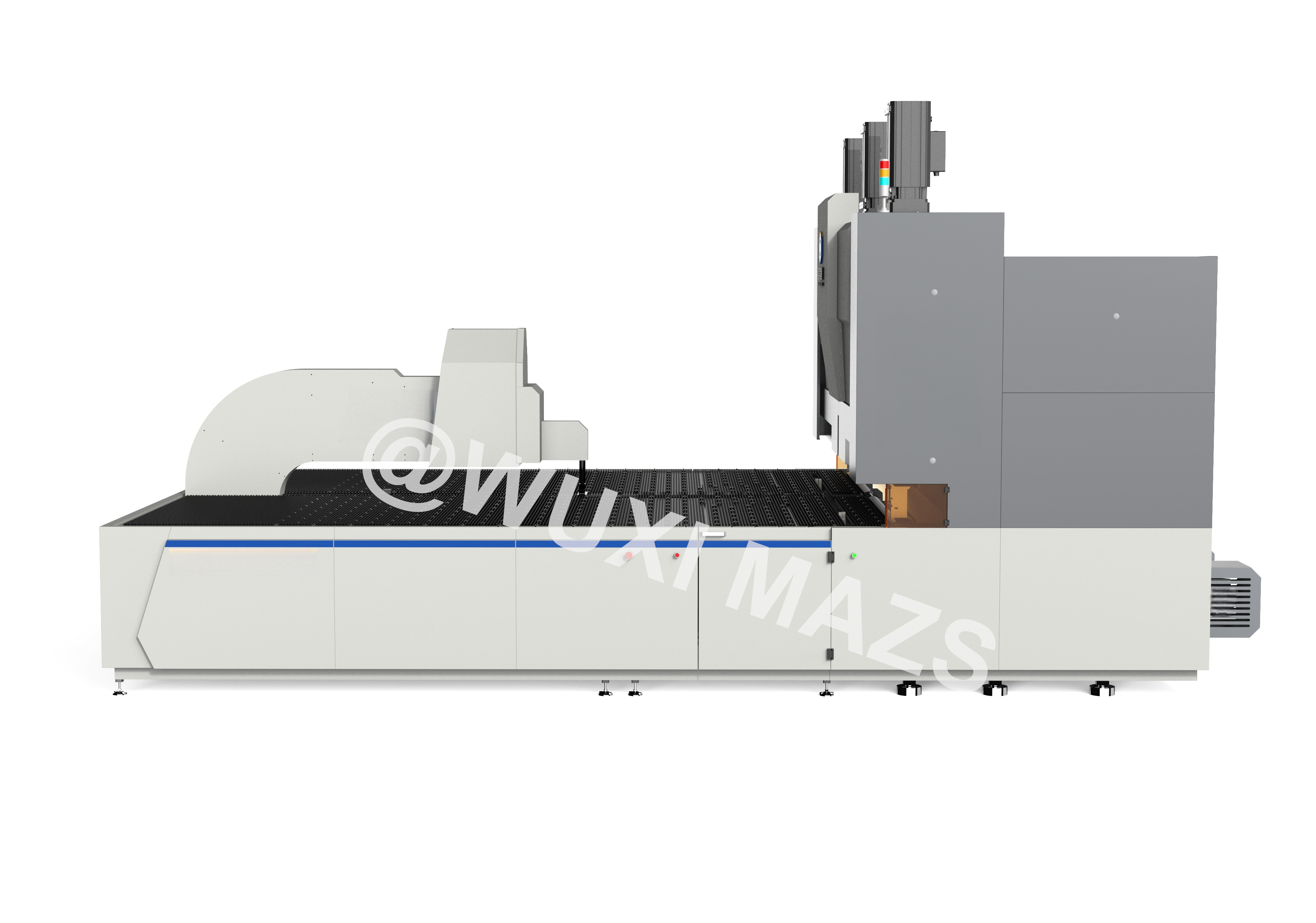

6290*3000*3450mm CNC Sheet Metal Folder for Seaworthy Packing
|
Item
|
Technical Parameters |
|
Fast bending speed
|
0.2second /time
|
|
Max. bending width
|
2500mm
|
|
Max. bending height
|
170mm
|
|
Rated voltage
|
380v
|
|
Total motor power
|
244Kw
|
|
Average power
|
about 5.8Kw
|
|
Noise
|
about 50dB
|
|
Machine size
|
629*300*345cm
|
|
Total machine weight
|
about 19t
|
|
Max. bending thickness
(thicker panel
customizable)
|
UST 515N/mm2 304 stainless steel 1.5mm
|
|
UST 410N/mm2 cold panel 2.0mm
|
|
|
UST 265N/mm2 aluminum panel 3.0mm
|
|
|
Minimum panel thickness
|
0.35mm
|
|
Four sides forming minimum inner size
|
140*190mm
|
|
Double sides forming minimum inner size
|
140mm
|
|
Max. bending size
|
2500*1500mm
|
|
Axis QTY
|
standard synchronized 18 axis
|
|
Power hinge knife
|
standard
|
