CNC Auto Bender Machine 2000mm Max Bending Width CNC Panel Bender 50Hz

CNC Auto Bender Machine 2000mm Max Bending Width CNC Panel Bender 50Hz
CNC Auto Bender Machine 2000mm Max Bending Width CNC Panel Bender 50Hz CNC Auto Bender Machine 2000mm Max Bending Width CNC Panel Bender 50Hz CNC Auto Bender Machine 2000mm Max Bending Width CNC Panel Bender 50Hz CNC Auto Bender Machine 2000mm Max Bending Width CNC Panel Bender 50Hz CNC Auto Bender Machine 2000mm Max Bending Width CNC Panel Bender 50Hz CNC Auto Bender Machine 2000mm Max Bending Width CNC Panel Bender 50Hz CNC Auto Bender Machine 2000mm Max Bending Width CNC Panel Bender 50Hz CNC Auto Bender Machine 2000mm Max Bending Width CNC Panel Bender 50Hz CNC Auto Bender Machine 2000mm Max Bending Width CNC Panel Bender 50Hz CNC Auto Bender Machine 2000mm Max Bending Width CNC Panel Bender 50Hz CNC Auto Bender Machine 2000mm Max Bending Width CNC Panel Bender 50Hz CNC Auto Bender Machine 2000mm Max Bending Width CNC Panel Bender 50Hz CNC Auto Bender Machine 2000mm Max Bending Width CNC Panel Bender 50Hz CNC Auto Bender Machine 2000mm Max Bending Width CNC Panel Bender 50Hz CNC Auto Bender Machine 2000mm Max Bending Width CNC Panel Bender 50Hz
Basic Information
Place of Origin: China
Brand Name: MAZS
Certification: CE, ISO
Model Number: MAY-2015
Minimum Order Quantity: 1 Set
Price: RMB/USD/EURO
Packaging Details: wooden case, polystyrene foam and other protective materials suitable for sea transportation
Delivery Time: 60 days to 120 days
Payment Terms: T/T or L/C
Supply Ability: 50 to 60 sets per month
Get Best Price Contact Now
Name: Auto Bender Machine Waterproof Rating: IPX-8
Feeding Method: Pressing Arm Suitable Material: Stainless Steel, Aluminum Panel, Cold Panel And Other Metal Materials
Max Bending Speed: 0.2 Second/time Max. Bending Size: 2000*1500mm
Certification: ISO 9001:2000, ISO 9001:2008, CE Warranty: 1 Year
Highlight:

Auto Bender Machine 50Hz

,

Auto Bender Machine 2000mm

,

CNC Panel Bender 50Hz



CNC Auto Bender Machine 2000mm Max Bending Width Auto Bender Machine 50Hz Frequency

Product Description:

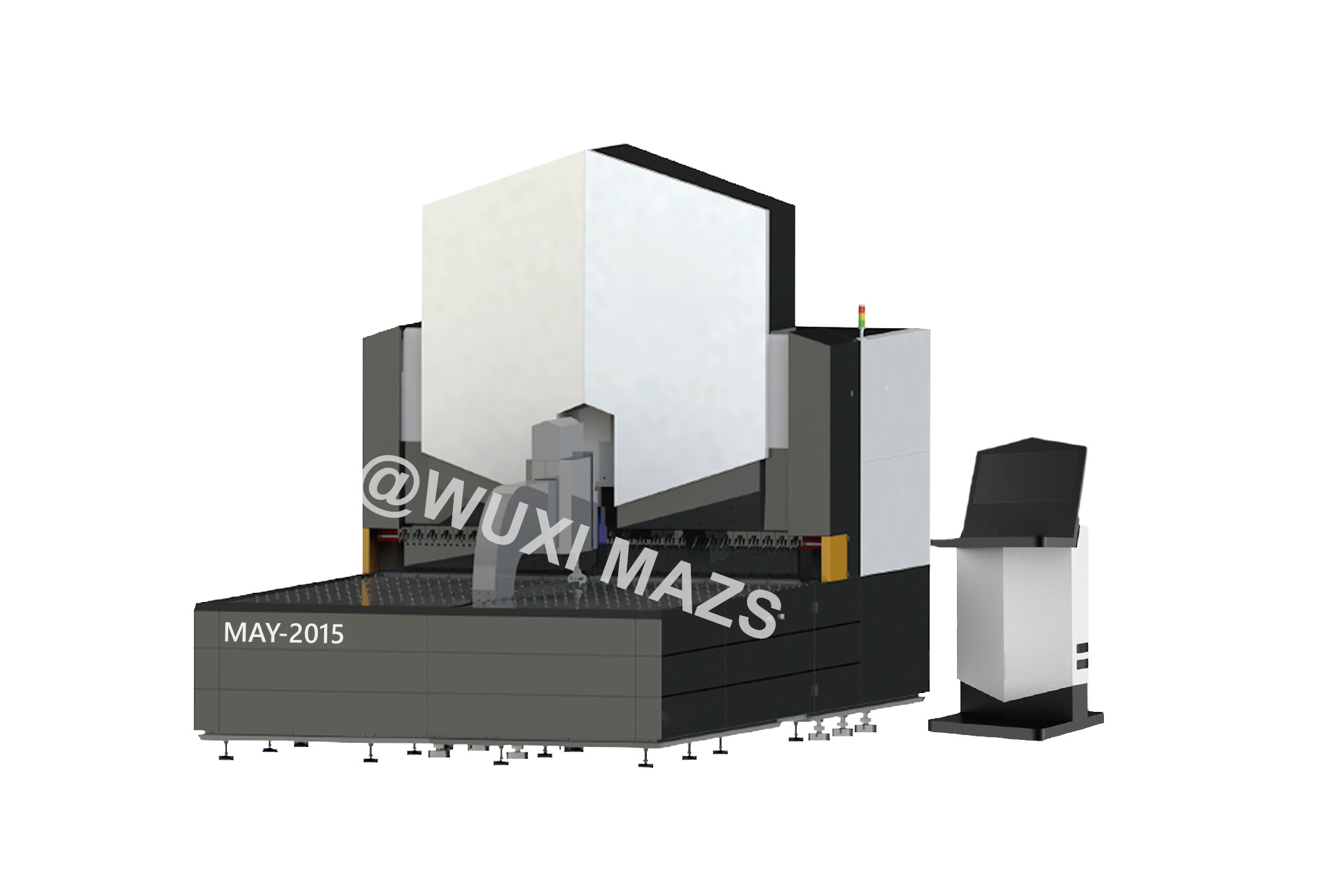

MAY-15 Axis series intelligent panel bender adopts pressing arm feeding method, and the whole machine is designed and produced according to the standard of high-precision machine tools. It is suitable for mesh, corrugated, hollow and various flat or special-shaped work pieces. It has more functions such as automatic reposition, oblique reposition, double C-axis rotation, wider range of application, and outstanding performance in terms of stability, reliability, etc.
This series of sheet metal plate automatic bending machine can bends sheet metal plates into various shapes and angles automatically. The sheet metal plate automatic bending machine is equipped with a computer numerical control (CNC) system to control and coordinate the movement of the bending mechanism. The bending mechanism of the machine consists of a combination of upper and lower tools, which apply pressure to the metal plate to produce the desired bend. The numerical control system controls the movement of these tools, adjusting their position and applying the necessary force to achieve the desired bending angle and radius.
MAY-15 Axis series intelligent panel bender provides high precision and repeatability, ensuring consistent and accurate bending results. Additionally, it increases the speed of production, reduce labor costs, and improve overall efficiency. The CNC system and its amenities provide numerous options for the user, and gives them greater control over the end product.





Features:

- Automatic and oblique reposition;

​- Improved C axis rotation speed and accuracy;
​- Special tooling structure and pneumatic upper pressing tooling ,which can bending more thicker panel;
- Wider range of application, and outstanding performance in terms of stability, reliability.
- Suitable for mesh, corrugated, hollow and various flat or special-shaped work pieces.

Technical Parameters:



Items Parameters for MAY-2015 Panel Bending Center
Feeding method Pressing arm
Positioning method Y axis double lift automatic positioning tools
Max. bending speed 0.2 s/time
Max. bending width 2000mm
Max. bending height 170mm
Rated voltage 380V
Total motor power 77Kw
Average power about 2.5Kw
Noise 50dB
Machine size 510*265* 330cm
Total machine weight about 18t
Max. bending thickness (thicker panel customized) UST 515N/mm2 304 stainless steel 2.0mm
UST 410N/mm2 cold panel 3.0mm
Minimum panel thickness 0.35mm
Four sides forming minimum inner size 160* 210mm
Double sides forming minimum inner size 160mm
Max. bending size 2000*1500mm
Axis qty. standard synchronized 15 axis
Power hinge knife standard
CNC Auto Bender Machine 2000mm Max Bending Width CNC Panel Bender 50Hz 0


Applications:

The MAZS MAY-15 series Auto bender machine is a high-performance machine designed to boost productivity and reduce labour costs in sheet metal fabrication.
Due to its versatile applications, the MAZS MAY-15 series Auto bender machine is popularly used for a variety of feature, such as file cabinets, tool cabinets, air conditioning, stoves, doors, elevators and so on.
Specifically, this machine can be employed for cabinet and kitchenware making, e.g., refrigerators, tool cabinets, outer guards, electrical cabinets, communication cabinets, gas cabinets, water meter cabinets, stoves, air conditioners, and more.
In addition, this machine is a valuable asset for sheet metal fabrication in other industries including furniture, ventilation, refrigeration, purification and decoration.

CNC Auto Bender Machine 2000mm Max Bending Width CNC Panel Bender 50Hz 1

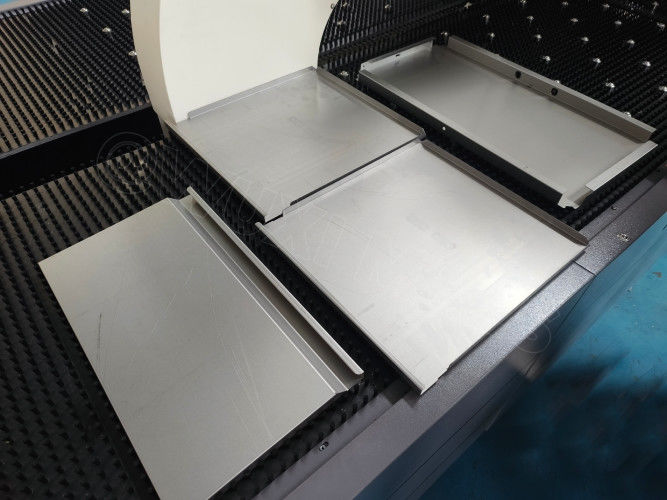

Bending Examples:

MAZS intelligent panel bender adopts universal bending mold, cost-saving and better efficiency . It could be used for various types of panel shape.

CNC Auto Bender Machine 2000mm Max Bending Width CNC Panel Bender 50Hz 2







Support and Services:

We provide technical support and services for Auto Bender Machine.
Our technical support staff will answer any questions you may have about the product, from installation to troubleshooting. We are available 24/7 and can be reached via our online chat, email, or phone.
Our services include product maintenance and repair, as well as regular preventive maintenance to ensure the smooth and reliable operation of the machine. We also provide training and support for users of the machine.



Packaging and Shipping:

* The CNC Bending Machine will be packed in wooden crates or cases.
* The package is designed to protect the machine from humidity and physical damage during transportation.
* The packing will meet international shipping standard.
* The machine can be shipped by air, sea, truck, or train.



FAQ:

Q1: What kind of work pieces are the CNC Bending Machine suitable for?
A1: It is suitable for mesh, corrugated, hollow and various flat or special-shaped work pieces.
Q2: What is the packaging details of the CNC Bending Machine?
A2: The Packaging Details of the CNC Bending Machine is wooden case, polystyrene foam and other protective materials suitable for sea transportation.
Q3: What certification does it have?
A3: ISO 9001:2000, ISO 9001:2008, CE.
Q4: Is it accepted the customized size?
A4: Yes, it could be designed and developed according to your specifications.
Q5: What functions do it have?
A5: It has more functions such as automatic reposition, oblique reposition, double C-axis rotation, wider range of application.
