Electric Double Sides Forming Automatic Bending Machine Minimum Inner 140mm

Electric Double Sides Forming Automatic Bending Machine Minimum Inner 140mm
Electric Double Sides Forming Automatic Bending Machine Minimum Inner 140mm Electric Double Sides Forming Automatic Bending Machine Minimum Inner 140mm Electric Double Sides Forming Automatic Bending Machine Minimum Inner 140mm Electric Double Sides Forming Automatic Bending Machine Minimum Inner 140mm Electric Double Sides Forming Automatic Bending Machine Minimum Inner 140mm Electric Double Sides Forming Automatic Bending Machine Minimum Inner 140mm Electric Double Sides Forming Automatic Bending Machine Minimum Inner 140mm Electric Double Sides Forming Automatic Bending Machine Minimum Inner 140mm Electric Double Sides Forming Automatic Bending Machine Minimum Inner 140mm Electric Double Sides Forming Automatic Bending Machine Minimum Inner 140mm Electric Double Sides Forming Automatic Bending Machine Minimum Inner 140mm Electric Double Sides Forming Automatic Bending Machine Minimum Inner 140mm Electric Double Sides Forming Automatic Bending Machine Minimum Inner 140mm Electric Double Sides Forming Automatic Bending Machine Minimum Inner 140mm Electric Double Sides Forming Automatic Bending Machine Minimum Inner 140mm
Basic Information
Place of Origin: China
Brand Name: MAZS
Certification: CE, ISO
Model Number: MAY-2515
Minimum Order Quantity: 1 Set
Price: RMB/USD/EURO
Packaging Details: Wooden case, polystyrene foam and other protective materials suitable for sea transportation
Delivery Time: 60 days to 120 days
Payment Terms: T/T or L/C
Supply Ability: 50 to 60 sets per month
Get Best Price Contact Now
Product Name: Auto Bender Machine Waterproof Rating: IPX-8
Suitable Material: Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel Feeding Method: Pressing Arm
Positioning Method: Y Axis Double Lift Automatic Positioning Tools Standard Axis Quantity: 15
Weight: 23000kg Warranty: 1 Year
Highlight:

Double Sides automatic bending machine

,

ODM Forming automatic bending machine

,

steel sheet folding machine 140mm

Electric Double Sides Forming Auto Bender Machine Minimum Inner Size 140mm

Product Description:

The MAY-15 Axis series intelligent panel bender is designed and produced according to the standard of high precision machining. This machine can be used for various flat or special shaped work pieces and it has more functions such as automatic reposition, oblique reposition, double C-axis rotation and wider range of application.
It is equipped with a computer numerical control (CNC) system to control and coordinate the movement of the bending mechanism. The numerical control system controls the upper and lower tools to apply pressure to the metal plate to produce the desired bend. They guarantee high precision and repeatability, and help to reduce labor costs and increase production speed.
In addition, the machine is suitable for different sizes and thicknesses of metal plates and it offers capability of automatic repositioning, oblique repositioning, and double C-axis rotation, making it suitable for a wider range of applications. In terms of performance, the machine is stable, reliable and efficient.





Features:

* Industry 4.0 architecture, which can be upgraded smoothly.
* Fast speed, only 0.2 seconds per time.
* Rapid prototyping of sheets, high consistency.
* Low power consumption.
* Simple maintenance and low cost.
* High degree of automation, simple operation, low labor requirements.
* No need for molding, complex shapes (right angles, non-right angles, etc. folded up or down) can be freely designed and produced at any time.
* Applicable to a wide range of materials, mainly stainless steel, cold-rolled sheet, etc.
* Compatible with various loading and unloading methods: manual loading and unloading, self-propelled robotic arm loading and unloading, docking robotic arm loading and unloading are optional.
* MAZS intelligent bending center has rich software and hardware interfaces, laying a good foundation for intelligent factories.
* The control system realizes 15-axis concurrent linkage in the true sense, the bending action is smooth, and the mechanical operation is highly coordinated.
* The unbalanced load detection system can effectively protect the machine and the sheets.
* The panel thickness detection system can effectively protect the machine and reduce the waste of sheets.
* The cloud operation and maintenance management system can monitor the operation of the machine in real time, and can carry out all-round customized management of the company's business.
* Friendly man-machine interface, easy to understand, flexible programming.
* For sheets with non-standard size, different positioning datums can be selected according to the shape of the sheets, and the shearing error of the sheet is controlled on the first bending edge to ensure the dimensional accuracy after forming.

Technical Parameters:

Items Parameters for MAY-2515 Panel Bending Center
Feeding method Pressing arm
Work table structure Brush
System minimum accuracy 0.001mm
Positioning method Y axis double lift automatic positioning tools
Max. bending speed 0.2 s/time
Max. bending width 2500mm
Max. bending height 170mm
Rated voltage 380V
Total motor power 79Kw
Average power about 2.9Kw
Noise 50dB
Machine size 565* 300* 340cm
Total machine weight about 23t
Max. bending thickness (thicker panel customized) UST 515N/mm2 304 stainless steel 2.0mm
UST 410N/mm2 cold panel 3.0mm
Minimum panel thickness 0.35mm
Four sides forming minimum inner size 160* 210mm
Double sides forming minimum inner size 160mm
Max. bending size 2500*1500mm
Axis qty. standard synchronized 15 axis
Power hinge knife standard

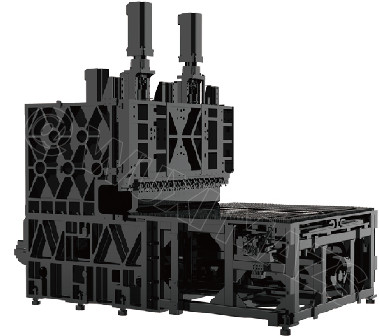

Electric Double Sides Forming Automatic Bending Machine Minimum Inner 140mm 0



Applications:

MAZS MAY-15 series Auto bender machine is a high-performance device designed to improve productivity and reduce labor cost in sheet metal fabrication. This machine can be applied in many areas, such as cabinet manufacturing, kitchenware production, furniture making, ventilation and refrigeration, purification, door forming, and elevator industry. It is ideal for all types of cabinets, including file, tool, exterior cover, electrical, communication, gas, and water meter cabinets, as well as air conditioners, stoves, and other kitchen appliances. Furthermore, this bender machine is perfect for purposes such as decoration and other related metal forming fields.

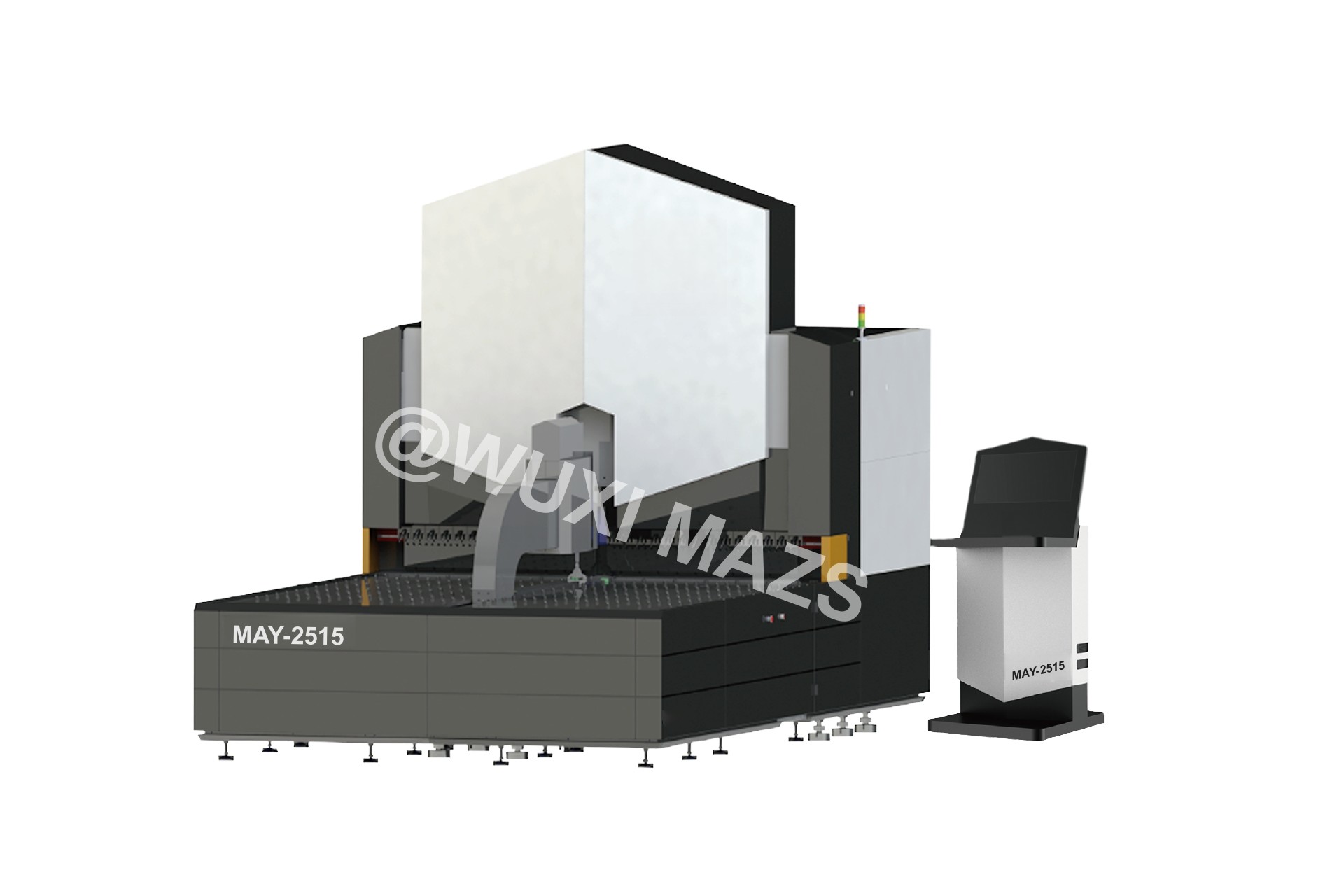

Electric Double Sides Forming Automatic Bending Machine Minimum Inner 140mm 1

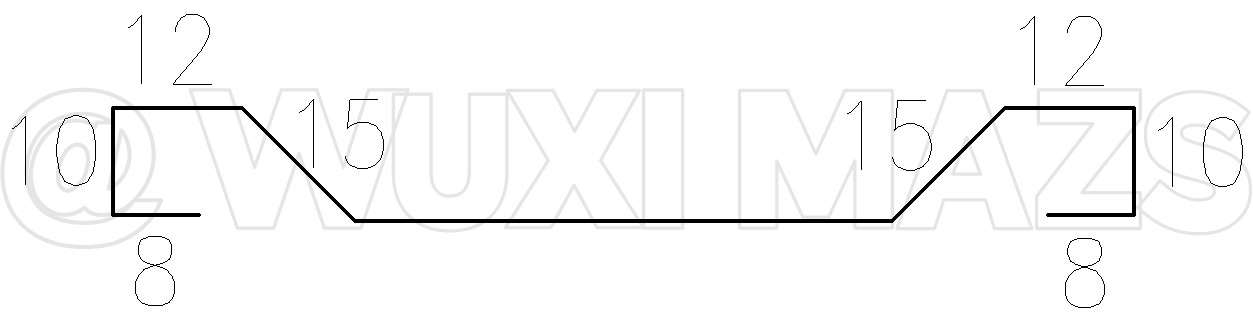

Bending Examples:

MAZS flexible intelligent bending center bending sheet metal bending does not require molds, and can fold various complex shapes. It can fold complex shapes of various combinations such as right angles, non-right angles, arcs, upper and lower folds, and is used in the field of metal forming of different sheets in different industries.

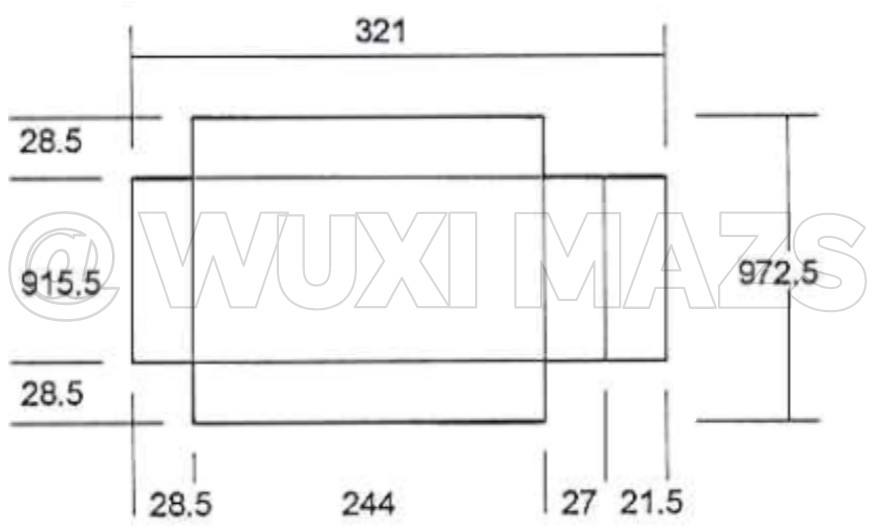

Electric Double Sides Forming Automatic Bending Machine Minimum Inner 140mm 2





Support and Services:

MAZS provides:
* Safe stock spare parts
Provide users with a complete inventory of accessories, ensure that accessories and wearing parts are replaced in time, and escort users' daily production.
* 7x24 Online service
Provide 7x24 hours of after-sales online services, maximize the protection of user’s daily production plans, realizing worryfree after-sale service.
* Lifetime service tracking
Establish a uniquely encoded user profile tracking and recording the details of the operation of the device, and providing lifelong maintenance services for cooperative users.





Packing and Shipping:

Packaging and Shipping for Auto Bender Machine:
* The CNC Bending Machine will be packed in wooden crates or cases.
* The package is designed to protect the machine from humidity and physical damage during transportation.
* The packing will meet international shipping standard.
* The machine can be shipped by air, sea, truck, or train.
Electric Double Sides Forming Automatic Bending Machine Minimum Inner 140mm 3


FAQ:

Q1: What is the feeding type of CNC Bending Machine?
A1: MAY-**15 series intelligent panel bender adopts pressing arm feeding method.
Q2: How many axis it uses?
A2: Standard axis quantity is 15.
Q3: What kind of work pieces are the CNC Bending Machine suitable for?
A3: It is suitable for mesh, corrugated, hollow and various flat or special-shaped work pieces.
Q4: What is the packaging details of the CNC Bending Machine?
A4: The Packaging Details of the CNC Bending Machine is wooden case, polystyrene foam and other protective materials suitable for sea transportation.
Q5: What certification does it have?
A5: ISO 9001:2000, ISO 9001:2008, CE.
Q6: Is it accepted the customized size?
A6: Yes, it could be designed and developed according to your specifications.
Q7: What functions do it have?
A7: It has more functions such as automatic reposition, oblique reposition, double C-axis rotation, wider range of application.
Q7: What is the warranty time?
A7: one year.
