WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-**18 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Pallet, wooden case and other standard export packaging |
| Delivery Time: | 60~120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 ~60 sets per month |
| Product Name: | CNC Bending Machine | Waterproof Rating: | IPX-8 |
|---|---|---|---|
| Suitable Material: | Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel | Feeding Method: | Pressing Arm |
| Standard Axis Quantity: | 18 | Max. Bending Size: | 2500*1500mm |
| Panel Thickness: | 0.35-3mm | Warranty: | 1 Year |
| Highlight: | 3200mm cnc sheet metal brake,18 axis cnc sheet metal brake,3200mm hydraulic sheet metal bender |
||

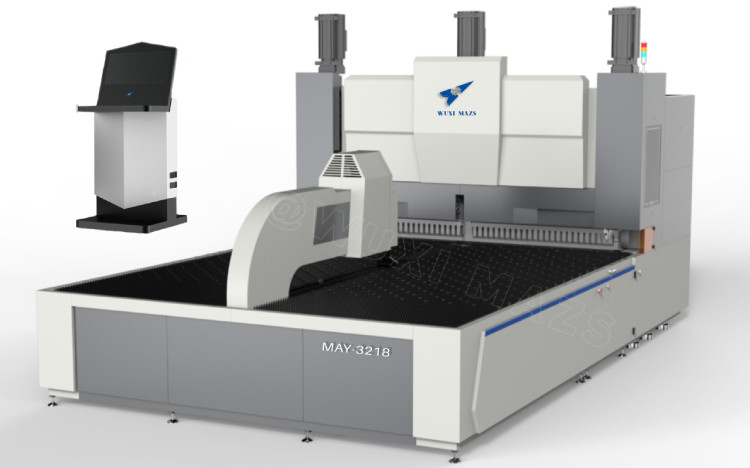

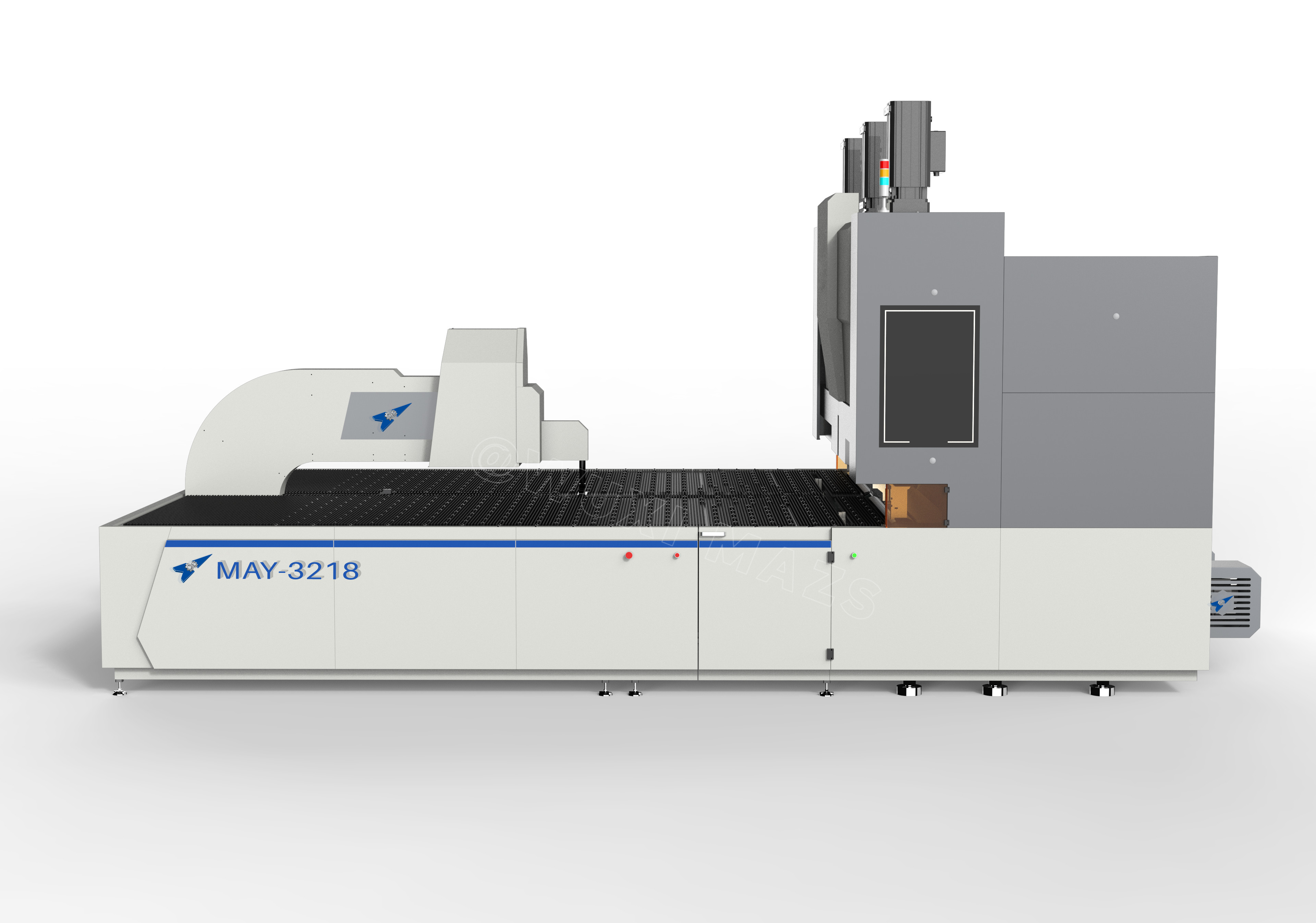

MAY-3218 CNC bending machine can bend the maximum panel size of 3200*1500mm and minimum panel thickness of 0.35mm. lt only needs one set of molds to complete bending of various shapes, such as ircular arc, crushed / pressed edge, loop shape, closed shape, and other complex shapes.
|
Items
|
Parameters for MAY-3218 Panel Bending Center
|
|
Feeding method
|
Pressing arm
|
|
Positioning method
|
Y axis double lift automatic positioning tools
|
|
Max. bending speed
|
0.2 s/time
|
|
Max. bending width
|
3200mm
|
|
Max. bending height
|
170mm
|
|
Rated voltage
|
380V
|
|
Total motor power
|
113Kw
|
|
Average power
|
about 2.9Kw
|
|
Noise
|
50dB
|
|
Machine size
|
660*440*328cm
|
|
Total machine weight
|
about 27t
|
|
Max. bending thickness (thicker panel customized)
|
UST 515N/mm2 304 stainless steel 1.5mm
|
|
UST 410N/mm2 cold panel 2.0mm
|
|
|
UST 265N/mm2 aluminum panel 3.0mm
|
|
|
Minimum panel thickness
|
0.35mm
|
|
Four sides forming minimum inner size
|
140*190mm
|
|
Double sides forming minimum inner size
|
140mm
|
|
Max. bending size
|
3200*1500mm
|
|
Axis qty.
|
standard synchronized 18 axis
|
|
Power hinge knife
|
standard
|

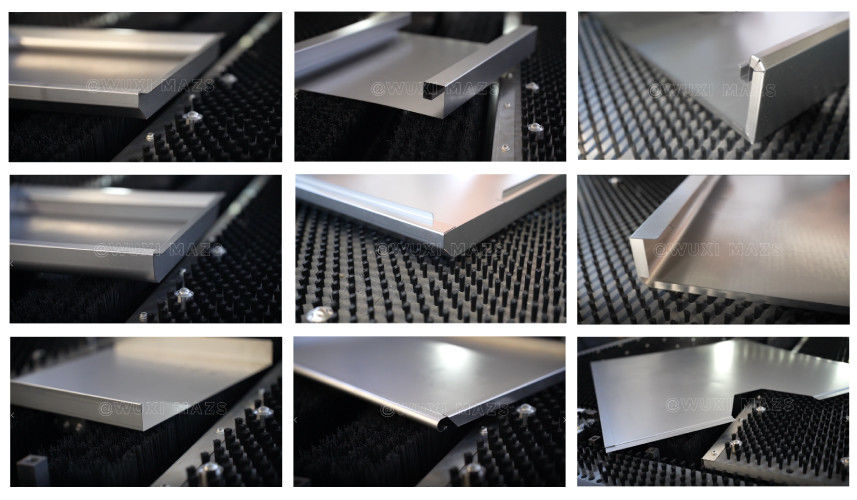

Graphic Bending Case
Bending Graphics
Bending Configuration
