WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |

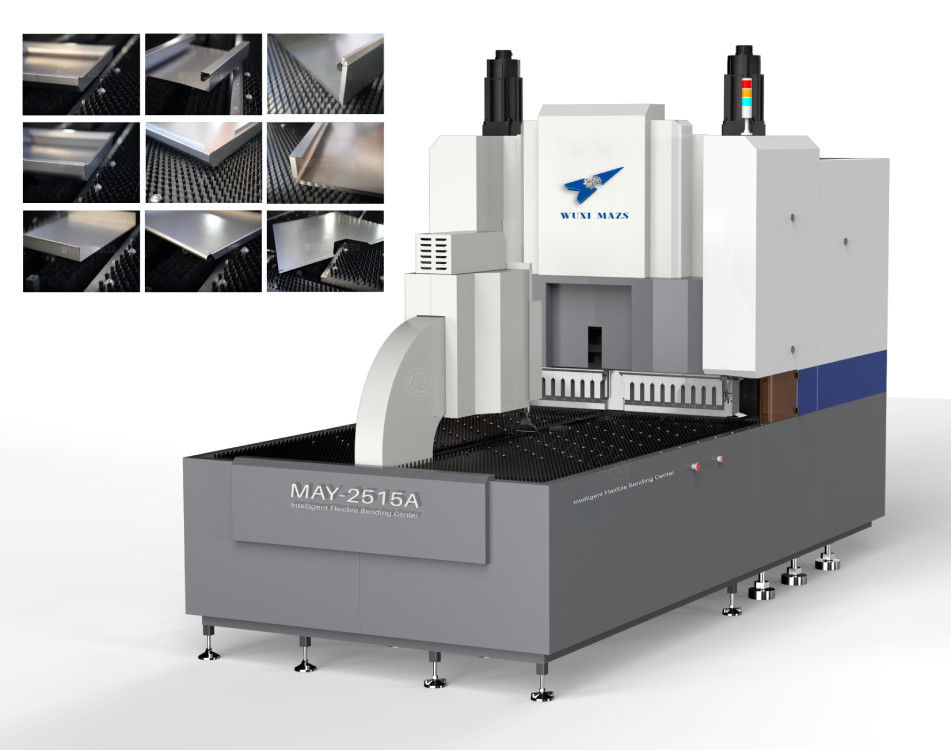

| Model Number: | MAY-2515A |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Wooden case, polystyrene foam and other protective materials suitable for sea transportation |
| Delivery Time: | 60 days to 120 days |
| Payment Terms: | T/T or L/C |
| Supply Ability: | 50 to 60 sets per month |
| Waterproof Rating: | IPX-8 | Suitable Material: | Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel |
|---|---|---|---|
| Work Table Structure: | Brush | System Minimum Accuracy: | 0.001mm |
| Max. Bending Speed: | 0.2 S/time | Material Thickness: | 0.35-3mm |
| Max. Bending Size: | 2500*1500mm | Warranty: | 1 Year |
| Highlight: | 15 Axis Panel Bending Machine,Panel Bending Machine 0.2s/time,Automatic Panel Bender 3mm |
||
|
Items
|
Technical Parameters for Panel Bending Center
|
|
Model No.
|
MAY-2515A
|
|
Feeding method
|
Pressing arm
|
|
Work table structure
|
Brush
|
|
System minimum accuracy
|
0.001mm
|
|
Positioning method
|
Y axis double lift automatic positioning tools
|
|
Max. bending speed
|
0.2 s/time
|
|
Max. bending width
|
2500mm
|
|
Max. bending height
|
170mm/300mm
|
|
Rated voltage
|
380V
|
|
Total motor power
|
79Kw
|
|
Average power
|
about 2.9Kw
|
|
Noise
|
50dB
|
|
Machine size
|
565* 300* 340cm
|
|
Total machine weight
|
about 23t
|
|
Max. bending thickness (thicker panel customized)
|
UST 515N/ mm2 304 stainless steel 1 . 5 mm
|
|
UST 410N/mm2 cold panel 2 . 0 mm
|
|
|
UST 2 6 5 N/ mm2 aluminum panel 3 . 0 mm
|
|
|
Minimum panel thickness
|
0.35mm
|
|
Four sides forming minimum inner size
|
140* 190mm
|
|
Double sides forming minimum inner size
|
140mm
|
|
Max. bending size
|
2500*1500mm
|
|
Axis qty.
|
standard synchronized 15 axis
|
|
Power hinge knife
|
standard
|
