Metal Sheet CNC Bending Machine 180° Angle 140mm Panel Bender

Basic Information

Place of Origin:	China
Brand Name:	MAZS
Certification:	CE, ISO
Model Number:	MAY-**18

Minimum Order Quantity:	1 Set
Price:	RMB/USD/EURO
Packaging Details:	wooden case, polystyrene foam and other protective materials suitable for sea transportation
Delivery Time:	60 days to 120 days
Payment Terms:	T/T or L/C
Supply Ability:	50 to 60 sets per month

Get Best Price Contact Now

Product Name:	CNC Bending Machine	Feeding Method:	Pressing Arm
Standard Axis Qty.:	18 Axis	Panel Thickness:	0.35-3 Mm
Max. Panel Size:	3200*1500 Mm	Noise:	50dB
Max. Bending Speed:	0.2 S/time	Warranty:	1 Year
Highlight:	Metal Sheet CNC Bending Machine , CNC Bending Machine 180° Angle , 140mm panel bender

CNC Metal Sheet Bending Machine 180° Max Bending Angle 140mm Double Sides Forming Min Inner Size

Product Description:

MAY-**18 intelligent flexible bending center X/W/Z with three major axes and three motors strengthened, resulting in thicker plate thickness. The standard bending thickness of the cold-rolled plate is 3.0mm, and the entire machine is designed and produced according to high-precision machine tool standards. The standard is equipped with a patented power hinge blade to avoid scraping and scratches. The patented quick clip upper press blade is used for more convenient disassembly. The MAY-**18 series deflection compensation can be CNC adjusted, increasing the thickness range of the bending plate, and achieving high comprehensive bending speed.

Features:

- Adjustable deflection compensation, increased panel thickness;

- Improved bending accuracy of thick plates;

- Quick release and quick installation of pressure tools;

- Standard electric hinge knife.

Technical Parameters:

Items	Parameters for MAY-3218 Panel Bending Center
Feeding method	Pressing arm
Positioning method	Y axis double lift automatic positioning tools
Max. bending speed	0.2 s/time
Max. bending width	3200mm
Max. bending height	170mm
Rated voltage	380V
Total motor power	113Kw
Average power	about 2.9Kw
Noise	50dB
Machine size	660440328cm
Total machine weight	about 27t
Max. bending thickness (thicker panel customized)	UST 515N/mm2 304 stainless steel 1.5mm
	UST 410N/mm2 cold panel 2.0mm
	UST 265N/mm2 aluminum panel 3.0mm
Minimum panel thickness	0.35mm
Four sides forming minimum inner size	140*190mm
Double sides forming minimum inner size	140mm
Max. bending size	3200*1500mm
Axis qty.	standard synchronized 18 axis
Power hinge knife	standard

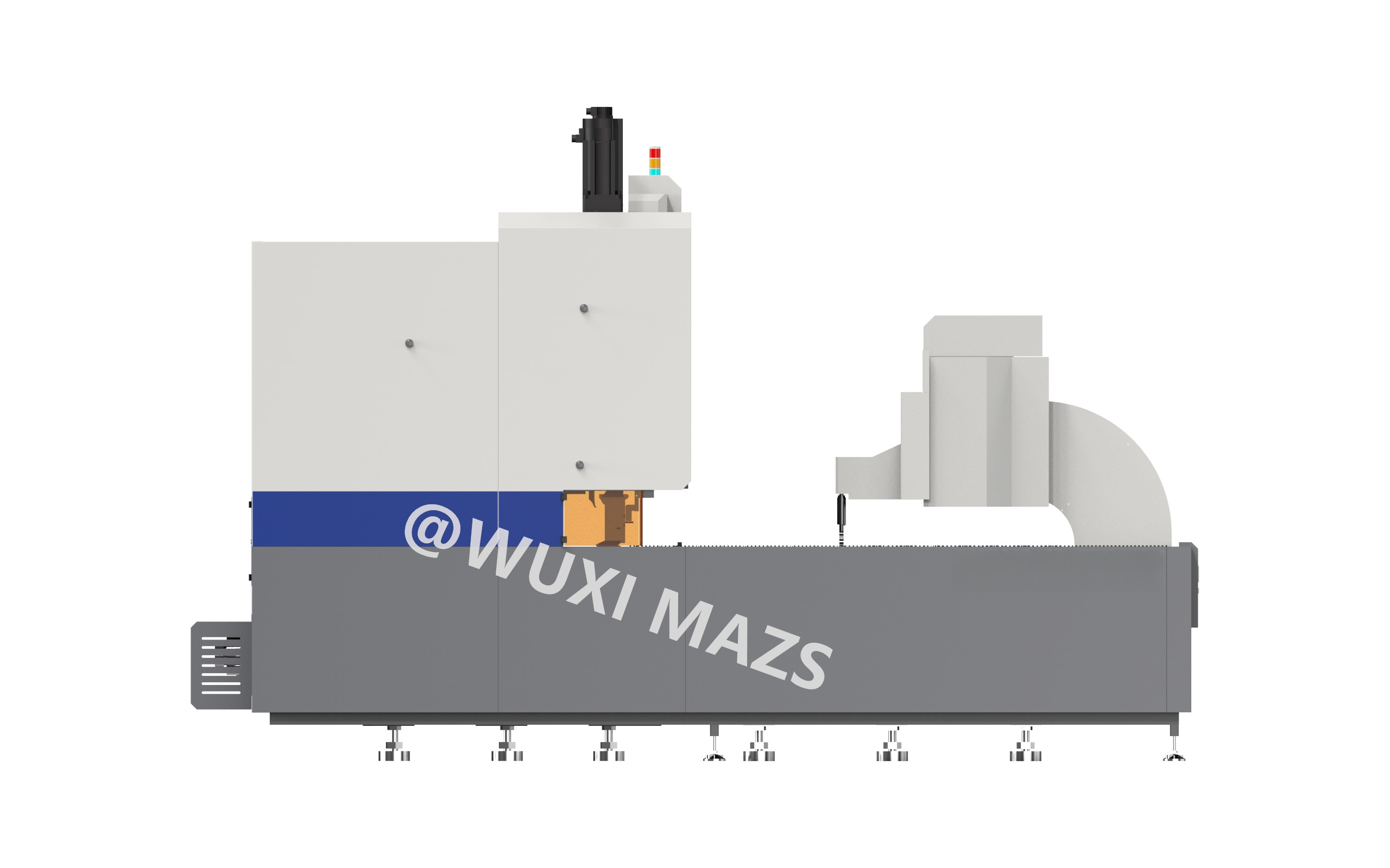

Metal Sheet CNC Bending Machine 180° Angle 140mm Panel Bender 0

Metal Sheet CNC Bending Machine 180° Angle 140mm Panel Bender 1

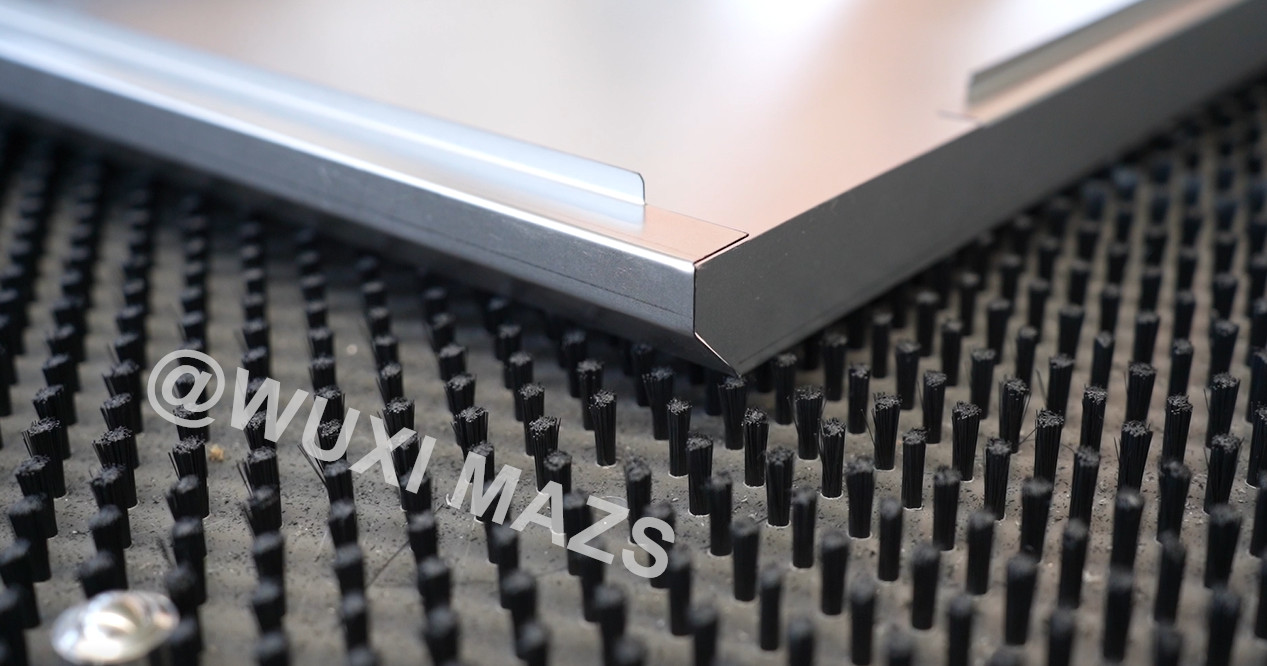

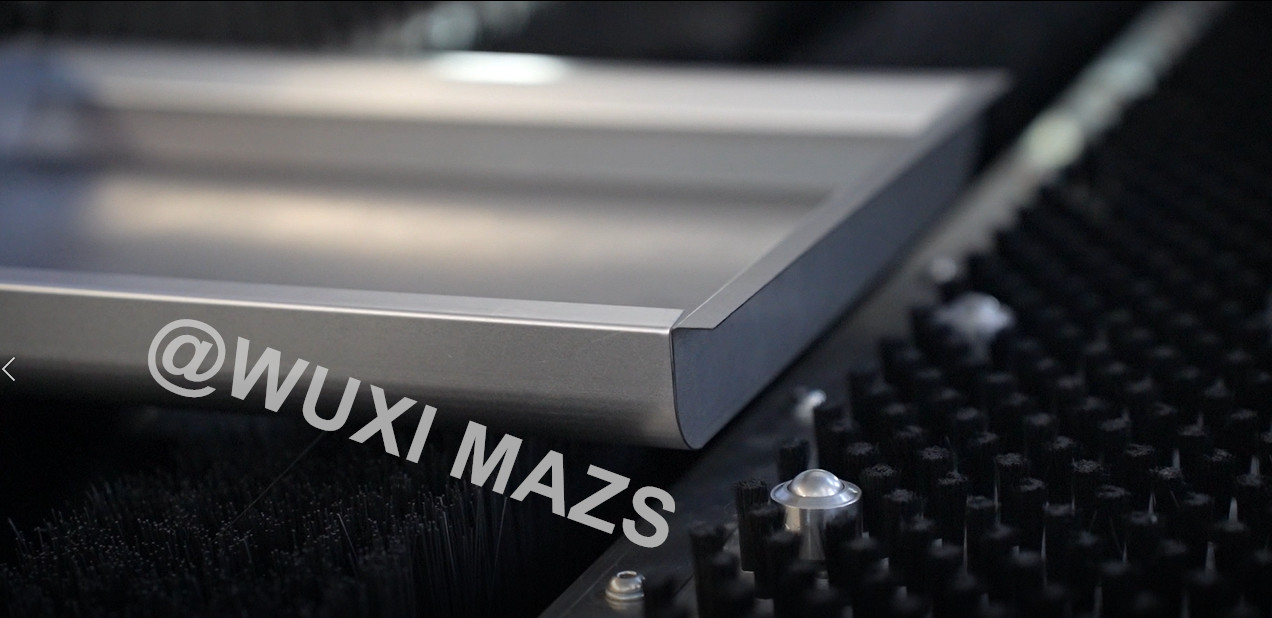

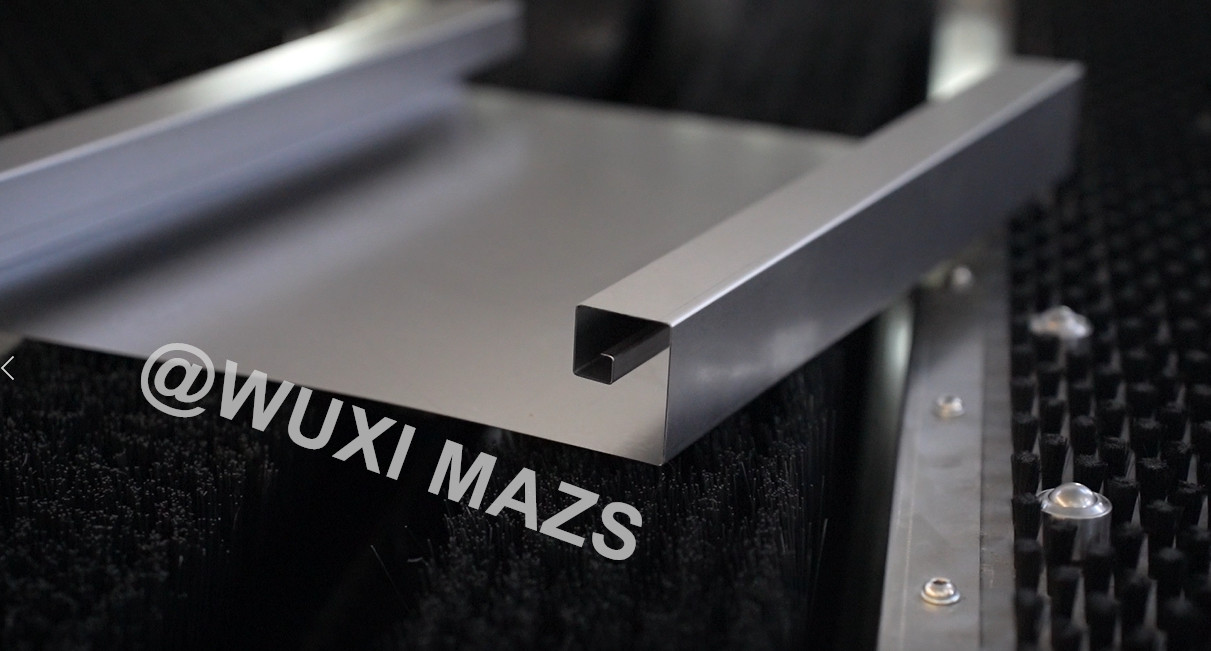

Applications:

MAZS metal sheet bender can be widely applied in following industried:

√ Cabinet: file cabinet, tool cabinet, outer guard cover, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet...

√ Kitchenware: refrigerator, air conditioning, stove...

√ Furniture

√ Electrical cabinets

√ Decorations

Support and Services:

We provide technical support and service for CNC Bending Machine.

If you have any questions about the operation or maintenance of the equipment, you can contact our customer service department.

Our staff will answer your questions promptly and provide you with the necessary technical support and advice.

If you need to repair the machine, our technicians can come to your site to diagnose and repair the machine.

We will also provide maintenance services to ensure the long-term reliable operation of your CNC Bending Machine.

Packing and Shipping:

- Packaging and Shipping for Metal Sheet Bending Machine:

- Packaged in a wooden crate, which is filled with polystyrene foam to provide extra protection during shipping.

FAQ:

Q: What's the brand name of the CNC Bending Machine?

A: The brand name of the CNC Bending Machine is MAZS.

Q: What's the model number of the CNC Bending Machine?

A: The model number of the CNC Bending Machine is MAY-**18.

Q: Where is the CNC Bending Machine made?

A: The CNC Bending Machine is made in China.

Q: What certifications does the CNC Bending Machine have?

A: The CNC Bending Machine has IE and ISO certifications.

Q: How is the CNC Bending Machine packed?

A: The CNC Bending Machine is packed with wooden case, polystyrene foam and other protective materials suitable for sea transportation.
