WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | China |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-2515 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Standard packing for sea transportation |
| Delivery Time: | 60 to 120 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 to 60 sets per month |
| Motor Power: | 79KW | Weight: | 23000KG |
|---|---|---|---|
| Product Name: | Automatic Sheet Metal Panel Bender | Four Edge Minimum Inner Size: | 140*190 Mm |
| Max Bending Width: | 2500mm | Max Bending Thickness: | 3.0 Mm |
| Max Feeding Speed: | 0.2 Sec/time | Double Edge Minimum Inner Size: | 140 Mm |
| Highlight: | MAZS 3.0mm sheet metal panel bender,MAZS sheet metal panel bender 79KW,MAZS steel bending machine automatic |
||

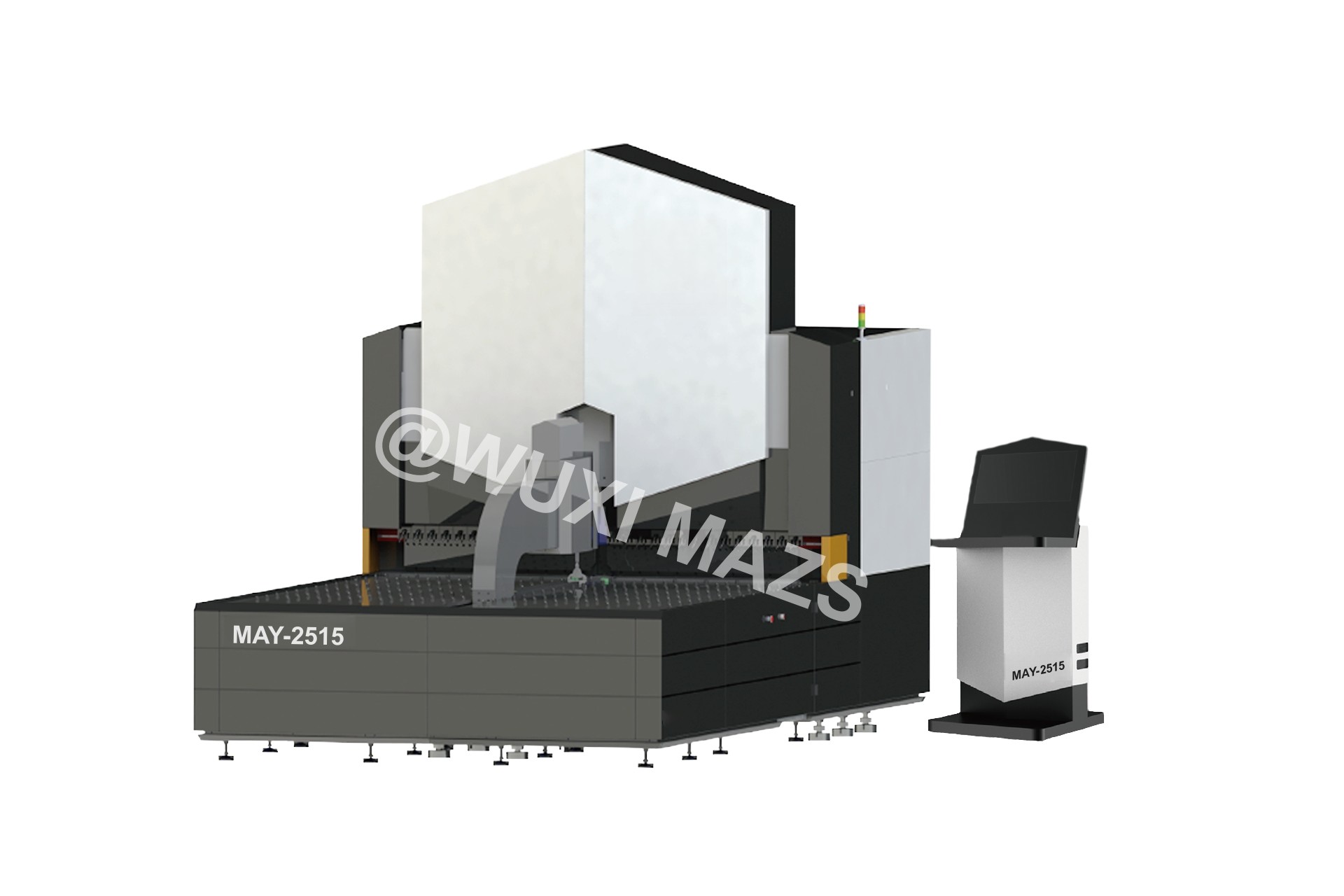

3.0mm Max Bending Thickness Sheet Metal Panel Bender 79KW Motor Power 380V/50HZ
| Item | MAY-2515 |
| Max. bending speed | 0 . 2 second/time |
| Max. bending width | 2500mm |
|
Max. bending height
|
170mm( standard) |
| 300mm( customized) | |
| Rated voltage | 380v |
| Total motor power | 79Kw |
| Average power | about 2.9Kw |
| Noise | about 50dB |
| Machine size | 565* 300* 340cm |
| Total machine weight | about 2 3 t |
|
Max. bending thickness (thicker panel customizable)
|
UST 515N/ mm2 304 stainless steel 1 . 5 mm |
| UST 410N/ mm2 cold panel 2 . 0 mm | |
| UST 2 6 5 N/ mm2 aluminum panel 3 . 0 mm | |
| Minimum panel thickness | 0 . 35mm |
| Four sides forming minimum inner size | 140* 190mm |
| Two sides forming minimum inner size | 140mm |
| Max. bending size | 2500* 1500mm |
| Axis QTY | standard synchronized 15 axis |
| Power hinge knife | standard |
