WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-2515 stainless plate panel bender |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Standard packing for sea transportation |
| Delivery Time: | 60 - 100 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 - 60 sets per month |
| Max. Bending Speed: | 0.2 Second/time | Max. Bending Width: | 2500mm |
|---|---|---|---|
| Max. Bending Height: | 170mm | Rated Voltage: | 380v |
| Total Motor Power: | 79Kw | Average Power: | About 2.9Kw |
| Max. Bending Thickness: | UST 515N/ Mm2 304 Stainless Steel 1.5 Mm | Minimum Panel Thickness: | 0 . 35mm |
| Highlight: | 2500mm CNC Sheet Metal Folding Machine,79Kw CNC Sheet Metal Folding Machine,79Kw steel sheet bending machine |
||

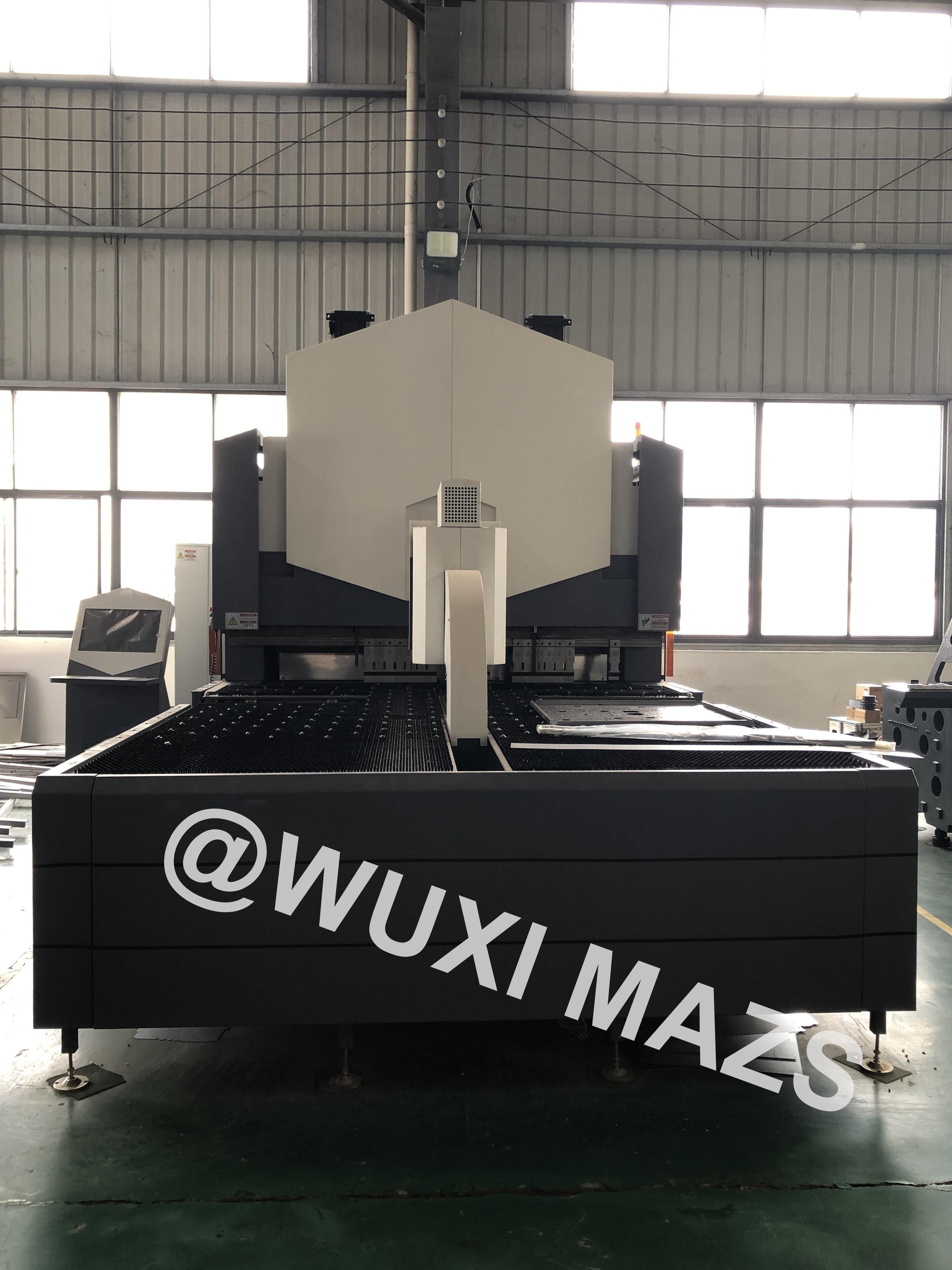

MAY-2515 CNC Sheet metal folding machine stainless plate bending center
MAY-2515 CNC Sheet metal folding machine has several advantages in sheet metal bending processes. The CNC sheet metal folding bending machine can provide high accuracy and repeatability, allowing for consistent bending results. They can handle a variety of sheet metal thicknesses and materials, including aluminum, stainless steel, and mild steel. Panel bending machines are also known for their efficiency and productivity, as they can perform multiple bends in a single operation.
The CNC sheet metal folding machine supplied by WUXI MAZS is a versatile and reliable machine used in the metal working industry to achieve accurate and efficient sheet metal bending operations.
| MAY-2515 Technical Parameters | |
| Feeding structure | Pressing arm |
| Work table structure | brush |
| System minimum accuracy | 0.001mm |
| Max bending speed | 0.2 second/time |
| Max feeding speed | 90m/min |
| Max.bending width | 2500mm |
| Max.Bending size | L 2500mm X W 1250mm |
|
Max. Bending height |
170mm (The maximum bending height after customization can reach 300mm) |
| Min. Bending height | 3mm |
| Min.arc radius | 0.5mm |
| Machine size | L565cm X W300cm X H340cm |
| Total weight | About 19 tons |
| Max. Bending width | UTS 515N/mm2 304 stainless steel 1.5mm |
| Min. Panel thickness | 0.35mm |
| Four side forming min. Inner size | About 140mmx190mm( excluding inverted folded side) |
| Double side forming min. Inner size | About 140mm |
| Axis | 15 |
complicated shape
round closed shape
1. After the equipment is checked and accepted, the quality guarantee period of the whole machine is one year.
2. During the warranty period of the equipment, Wuxi MAZS is responsible for free replacement or maintenance of parts due to the quality of the equipment itself, except for conventional consumables (such as suction cups) and those that are responsible for the user's illegal operation.
3. Outside the warranty period, Wuxi MAZS still provides extensive and preferential technical support and spare parts supply for the buyer. Wuxi MAZS will promptly notify the buyer of the software upgrade situation. Except for new requirements, we provide daily software upgrade services free of charge.
