WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAY-2515 stainless plate panel bender |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Standard packing for sea transportation |
| Delivery Time: | 60 - 100 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 - 60 sets per month |
| Max. Bending Speed: | 0.2 Second/time | Max. Bending Width: | 2500mm |
|---|---|---|---|
| Max. Bending Height: | 170mm | Rated Voltage: | 380v |
| Total Motor Power: | 79Kw | Average Power: | About 2.9Kw |
| Max. Bending Thickness: | UST 515N/ Mm2 304 Stainless Steel 1.5 Mm | Minimum Panel Thickness: | 0 . 35mm |
| Highlight: | Stainless plate Panel Bending Machine,Panel Bending Machine Aluminium,Aluminium cnc sheet metal folder |
||

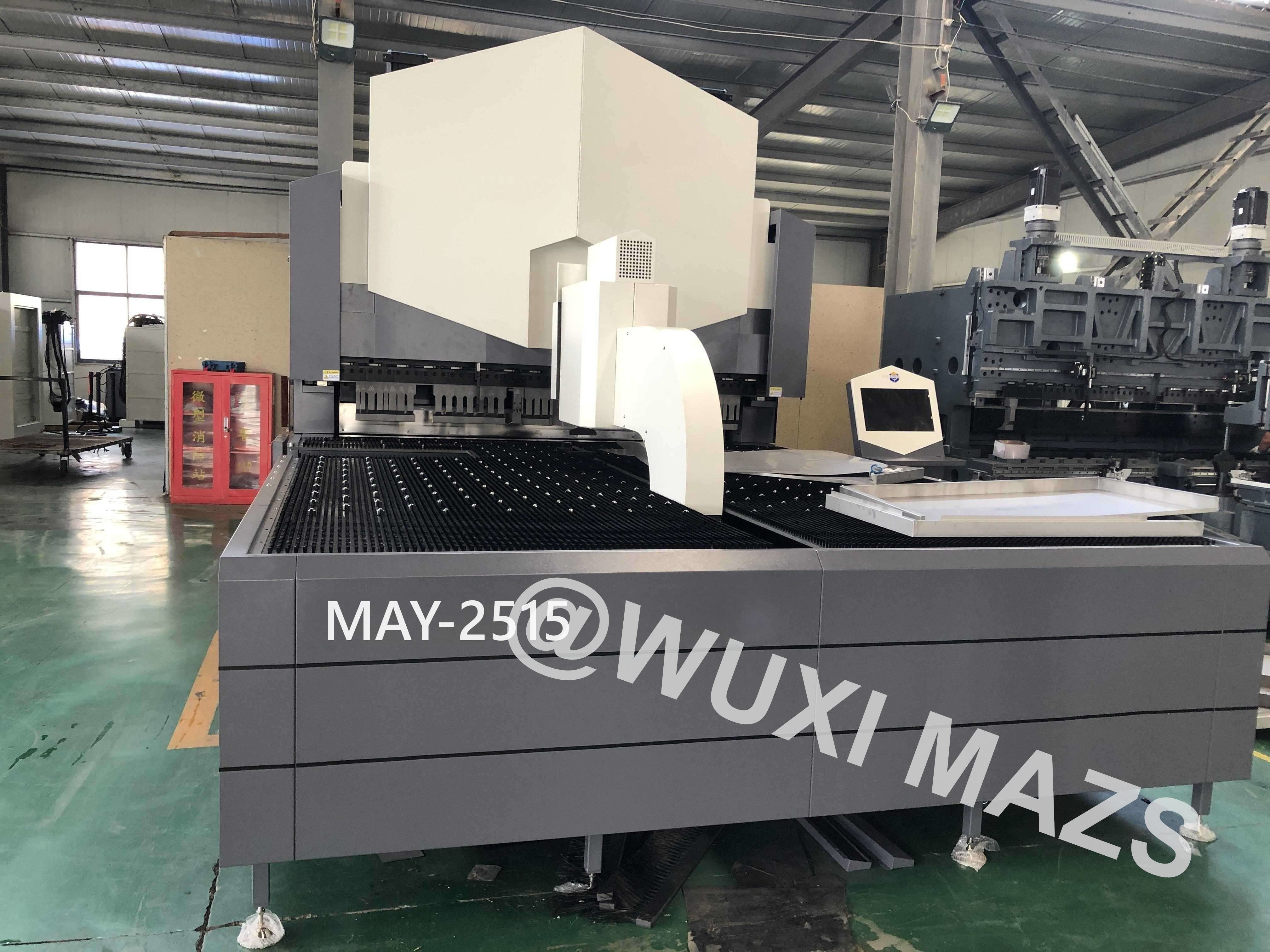

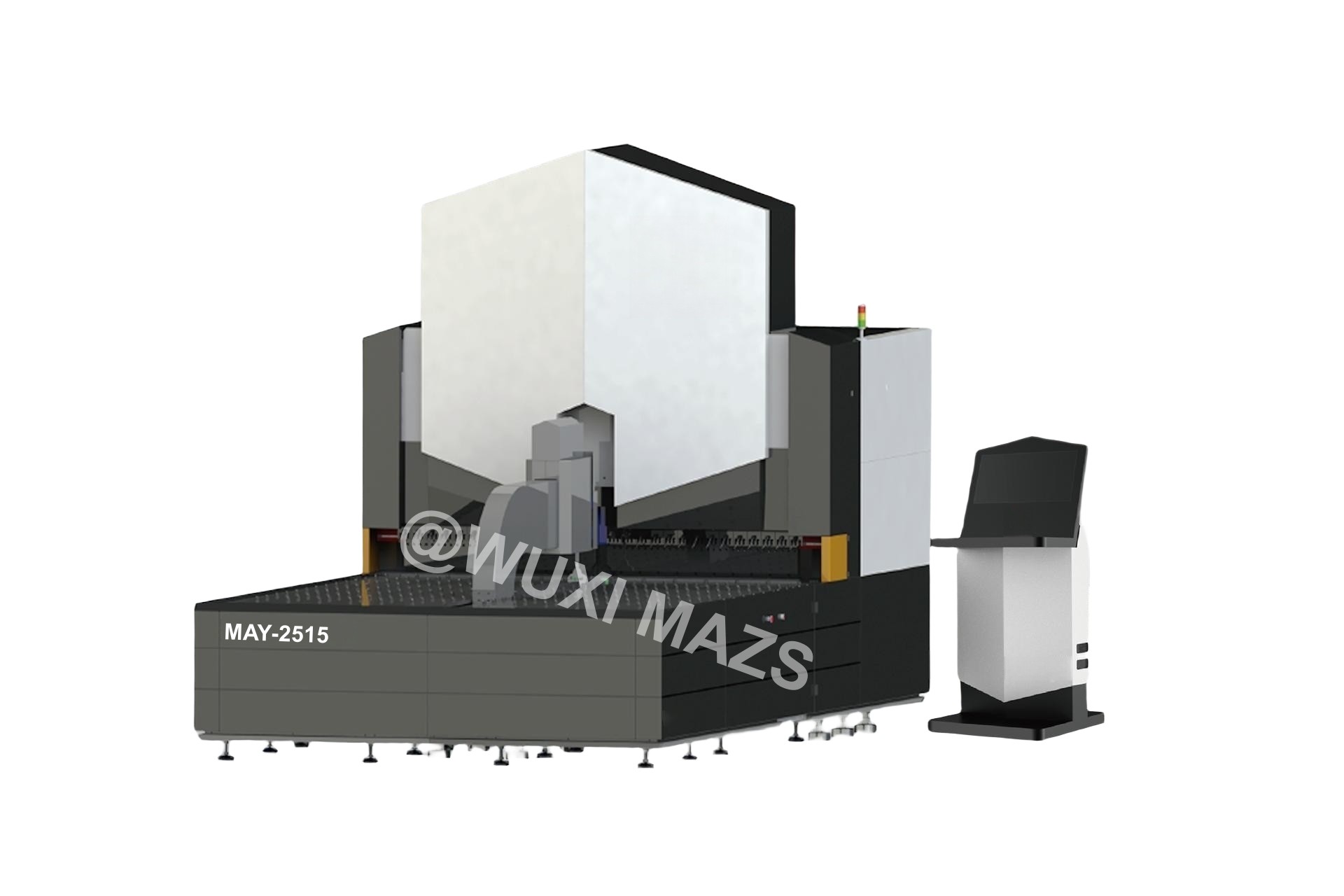

MAY-2515 Stainless plate panel bending machine aluminium folding
MAY-2515 Stainless plate panel bender adopts pressing arm loading method, and the whole machine is designed and produced according to the standard of high-precision machine tools. It is suitable for mesh, corrugated, hollow and various flat or special-shaped work pieces. It has more functions such as automatic reposition, oblique reposition, double C-axis rotation, wider range of application, and outstanding performance in terms of stability, reliability, etc.
| MAY-2515 Technical Parameters | |
| Feeding structure | Pressing arm |
| Work table structure | brush |
| System minimum accuracy | 0.001mm |
| Max bending speed | 0.2 second/time |
| Max feeding speed | 90m/min |
| Max.bending width | 2500mm |
| Max.Bending size | L 2500mm X W 1250mm |
|
Max. Bending height |
170mm (The maximum bending height after customization can reach 300mm) |
| Min. Bending height | 3mm |
| Min.arc radius | 0.5mm |
| Machine size | L565cm X W300cm X H340cm |
| Total weight | About 19 tons |
| Max. Bending width | UTS 515N/mm2 304 stainless steel 1.5mm |
| Min. Panel thickness | 0.35mm |
| Four side forming min. Inner size | About 140mmx190mm( excluding inverted folded side) |
| Double side forming min. Inner size | About 140mm |
| Axis | 15 |
The stainless plate metal sheet panel bender bending center adopts a universal bending mold, and a set of molds can complete the bending of various shapes, such as the following shapes:
Circular arc Closed type
Complex sheet Continuous type
Support and Services:
We provide technical support and service for Automatic Sheet Metal Panel Bender.
Our technical support and service includes:
We also provide on-site technical support and service, if necessary.
