WUXI MAZS MACHINERY SCIENCE & TECHNOLOGY CO., LTD.
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | MAZS |
| Certification: | CE, ISO |
| Model Number: | MAX-1009 |
| Minimum Order Quantity: | 1 Set |
| Price: | RMB/USD/EURO |
| Packaging Details: | Standard packing for sea transportation |
| Delivery Time: | 60 days to 80 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 50 to 60 sets per month |
| Description: | CNC Panel Bender | Loading Method: | Suction Cup Panel Bender |
|---|---|---|---|
| Position Method: | Y Axise Three Positioning Rulers | Suitable Material: | Stainless Steel, Aluminium Plate, Cold Plate, And Other Metal Material |
| Panel Sheet Thickness: | 0.35-1.6mm | Sheet Size: | Max. 1400*1400mm |
| Panel Requirement: | Smooth Panel Surface, No Punching Nor Holes, Suction Cup Adsorption | Max. Bending Speed: | 0.2 Sec/ Time |
| Highlight: | 25Kw CNC Panel Bender,0.2s/time CNC Panel Bender,three axis plate bending machine |
||

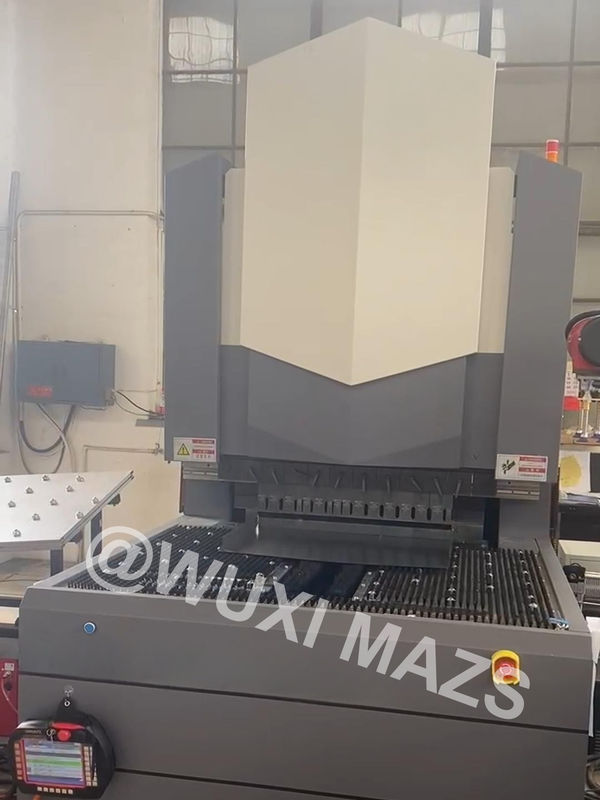

MAX-1009 intelligent flexible bending center is used for sheet metal fabrication. Automated and semi-automated processes such as CNC panel bending, which use CAD and CAM drawings, produce metal pieces with tight tolerances.
* Sharp — In sharp bends, the radius is smaller than the minimum bend radius, while the center of the radius is creased to produce a sharp bend.
|
Items
|

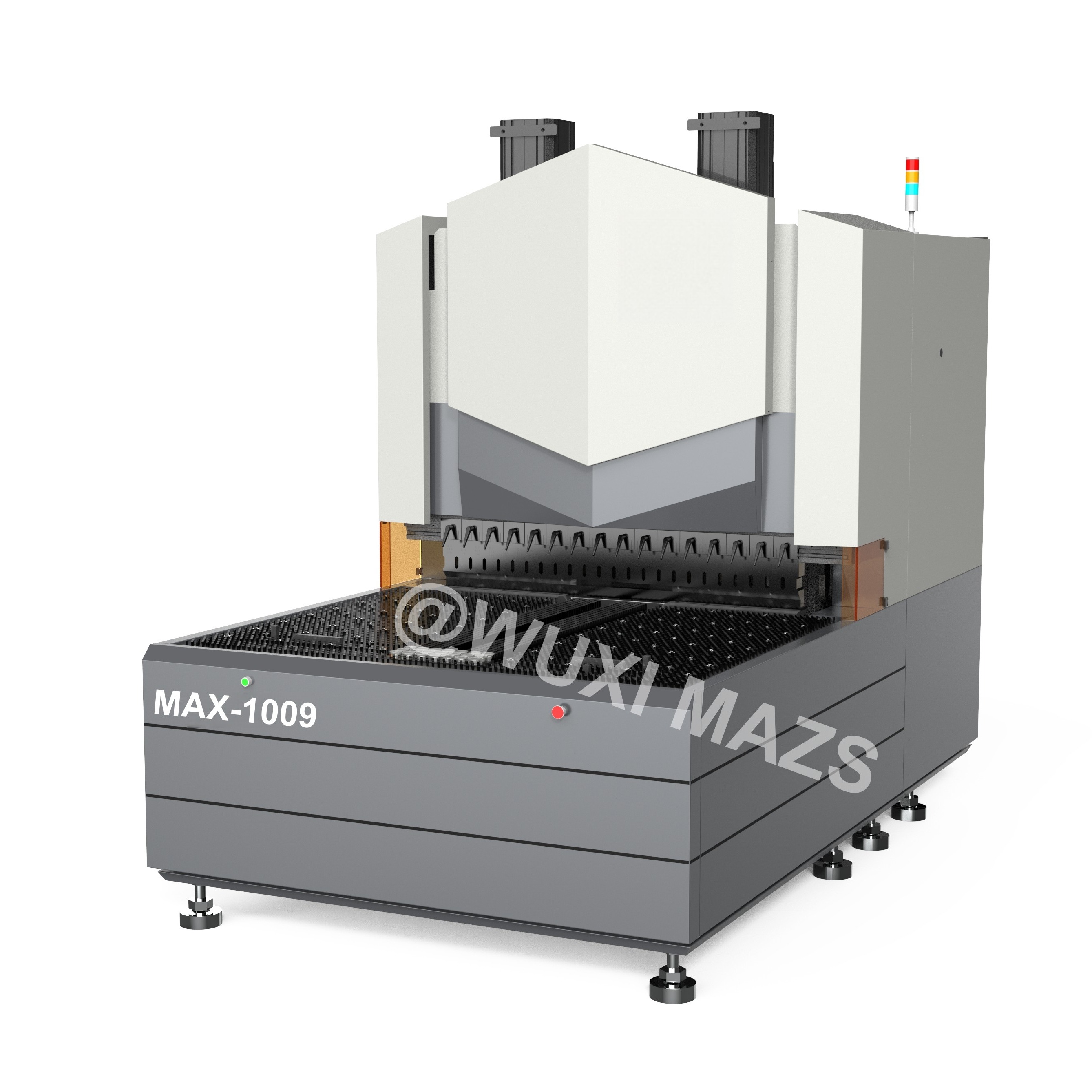

Technical Parameters for MAX-1009Panel Bending Center
|
|
Feeding method
|
Suction cup
|
|
Positioning method
|
Y axis three positioning rulers
|
|
Max. bending speed
|
0.2 s/time
|
|
Max. bending width
|
1000mm
|
|
Max. bending height
|
170mm
|
|
Rated voltage
|
380V
|
|
Total motor power
|
25Kw
|
|
Average power
|
about 1.1Kw
|
|
Noise
|
50dB
|
|
Machine size
|
285*150*280cm
|
|
Total machine weight
|
about 7t
|
|
Max. bending thickness (thicker panel customized)
|
UST 5 1 5 N/ mm2 3 04 stainless steel 1.0 mm
|
|
UST 4 1 0 N/ mm2 cold panel 1 . 2 mm
|
|
|
UST 265N/ mm2 aluminum panel 1.6mm
|
|
|
Minimum panel thickness
|
0.35mm
|
|
Four sides forming minimum inner size
|
140*210mm
|
|
Double sides forming minimum inner size
|
140mm
|
|
Max. bending size
|
1000* 1000mm
|
|
Axis qty.
|
standard synchronized 9 axis
|
|
Hinge knife
|
common hinge knife
|

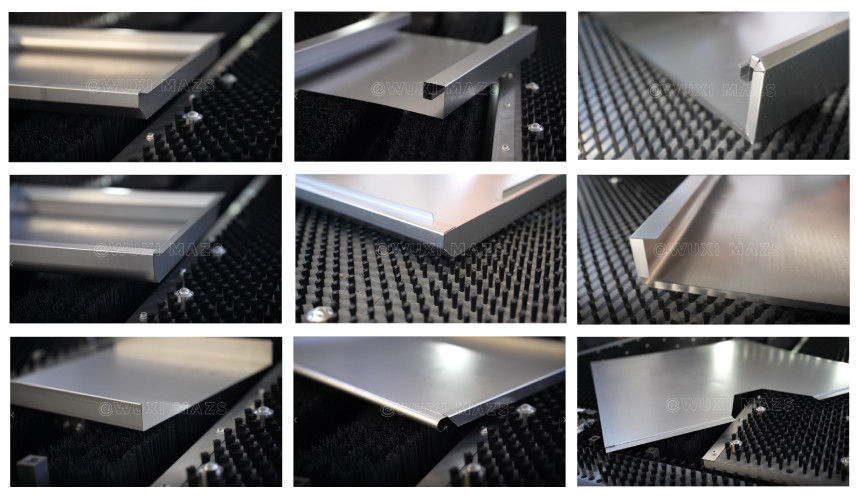

MAZS flexible intelligent bending center bending sheet metal bending does not require molds, and can fold various complex shapes. It can fold complex shapes of various combinations such as right angles, non-right angles, arcs, upper and lower folds, and is used in the field of metal forming of different sheets in different industries.
MAZS metal sheet bender can be widely applied in following industried:
√ Cabinet: file cabinet, tool cabinet, outer guard cover, electrical cabinet, communication cabinet, gas cabinet, water meter cabinet...
√ Kitchenware: refrigerator, air conditioning, stove...
√ Furniture
√ Electrical cabinets
√ Decorations
